MES Solutions for The Typical Discrete Industry
Typical Workshop Management Problems:
1. Personnel
Quality management lacks systematicity; equipment management is relatively discrete; process planning and equipment are poorly correlated.
Monthly reports are numerous, and statistics are time-consuming and labor-intensive; employee performance cost statistics are unclear.
2. Equipment
The actual availability of equipment lacks timeliness; equipment failures lack timely feedback; equipment parameters lack monitoring.
Equipment adjustment and idle time account for a large proportion, the process is not monitored, and there is a lack of effective connection between people and machines.
3. Process
Process and drawing control are separated from actual production and lack a unified platform; process material traceability and equipment are separated.
Equipment efficiency lacks actual monitoring; OEE indicators are difficult to obtain real-time and effective analysis; tool use is not monitored.
4. Planning
Production progress feedback is not timely; semi-finished product transfer is not smooth, and operating efficiency is low; production scheduling and reporting are not connected.
Output, equipment efficiency, and cost statistics are not timely, and management lacks an intuitive understanding of factory benefits.

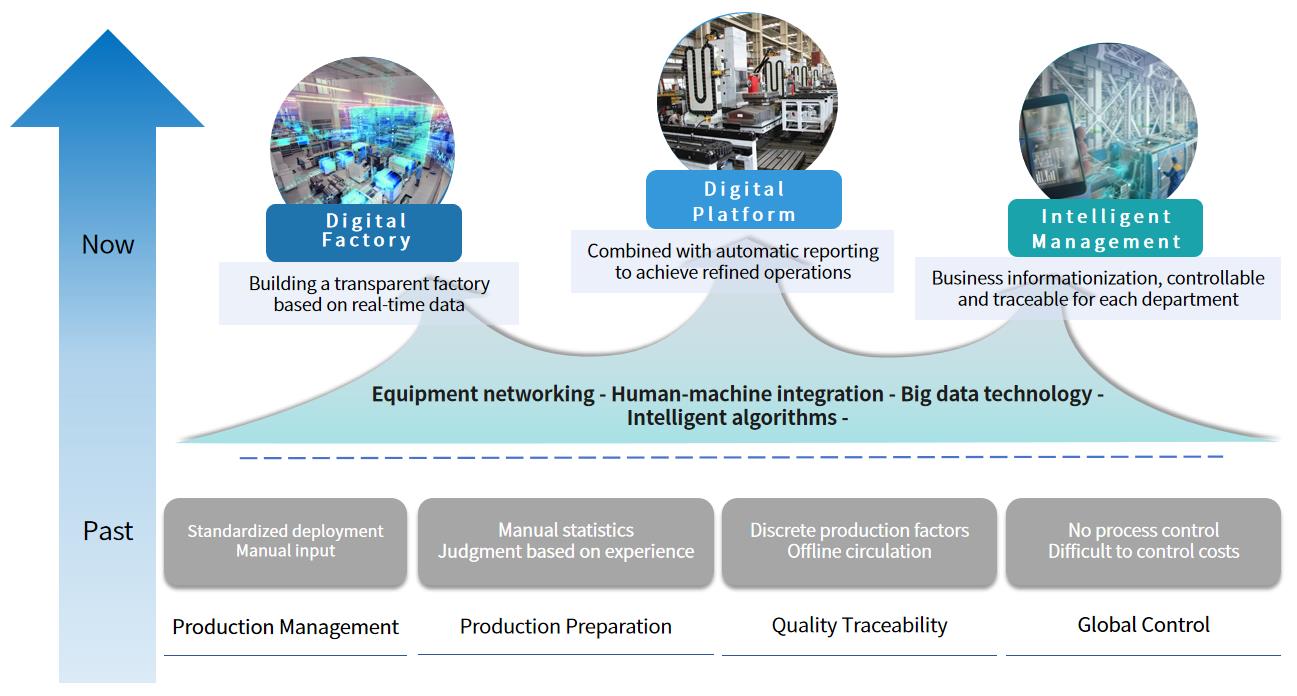

Development Trend of Precision Machining

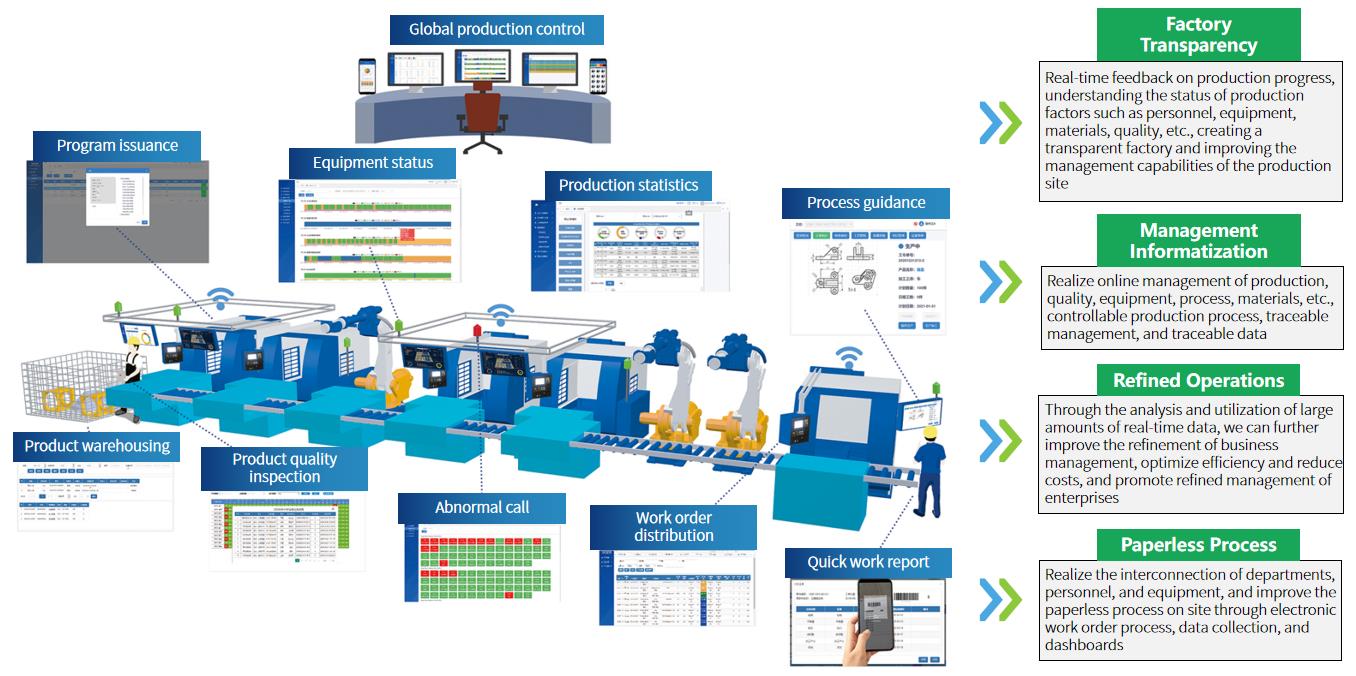

Typical MES Applications

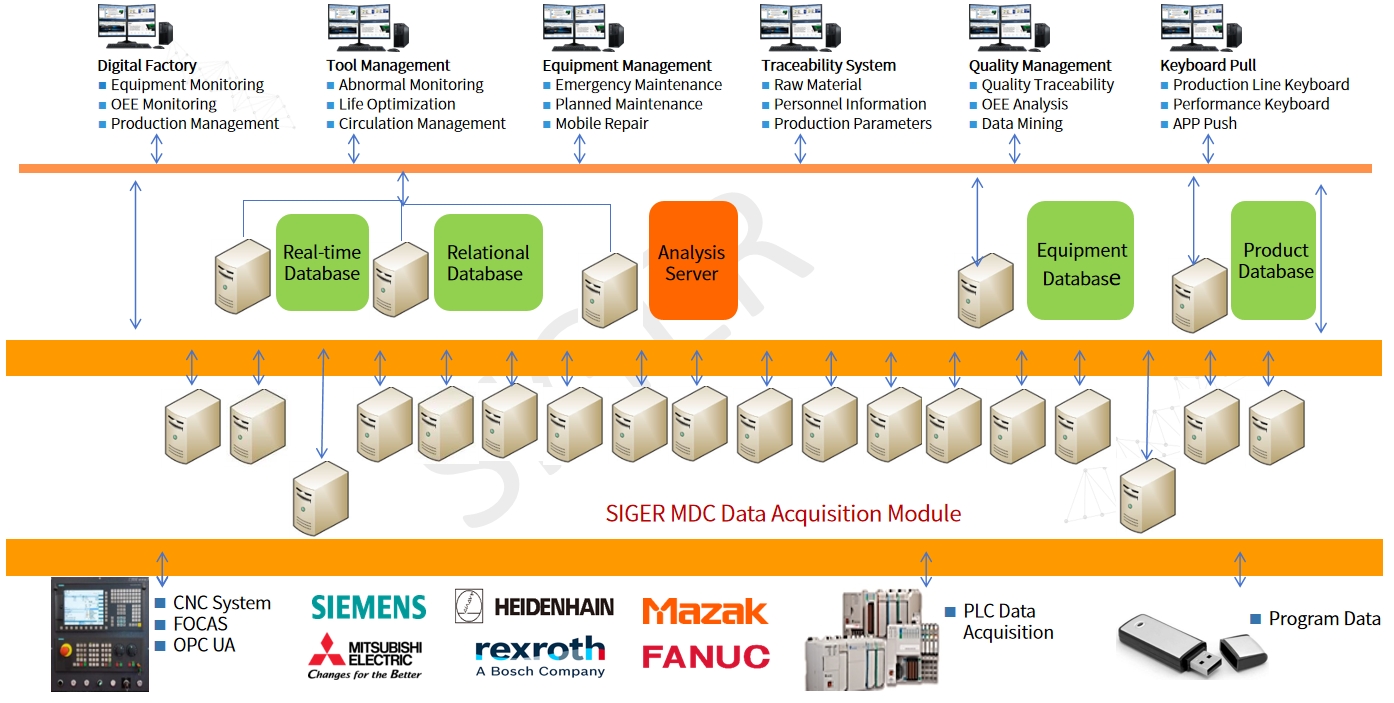

Product System Structure
The SIGER precision machining digital factory system structure is based on the MDC communication module at the bottom layer to complete the device-side connection. It combines the BOM and MRP master plan in ERP to complete the production task docking, and constructs the corresponding full manufacturing process management module under the precision machining scenario, providing an integrated solution for precision machining with all elements and scenarios including man, machine, material, method, and environment. Based on the reconstruction of the full-element structure of data, the SIGER data analysis engine drives the end-to-end data interconnection and analysis of the equipment to complete the end-to-end automatic control of the equipment.
The overall architecture of SIGER's precision machining digital factory adopts a separated architecture, with the bottom layer being MDC (machine data collection) and the middle layer being a big data streaming processing architecture, which can support the simultaneous integration of data from hundreds to thousands of devices without delay; the upper layer combines ERP and PLM to complete the integration of business scenarios, providing full-module management of precision machining digital factories, and meeting the needs of managers at all levels to obtain workshop information to the greatest extent, so that managers at all levels can truly see the production status in real time and know the production results at any time.

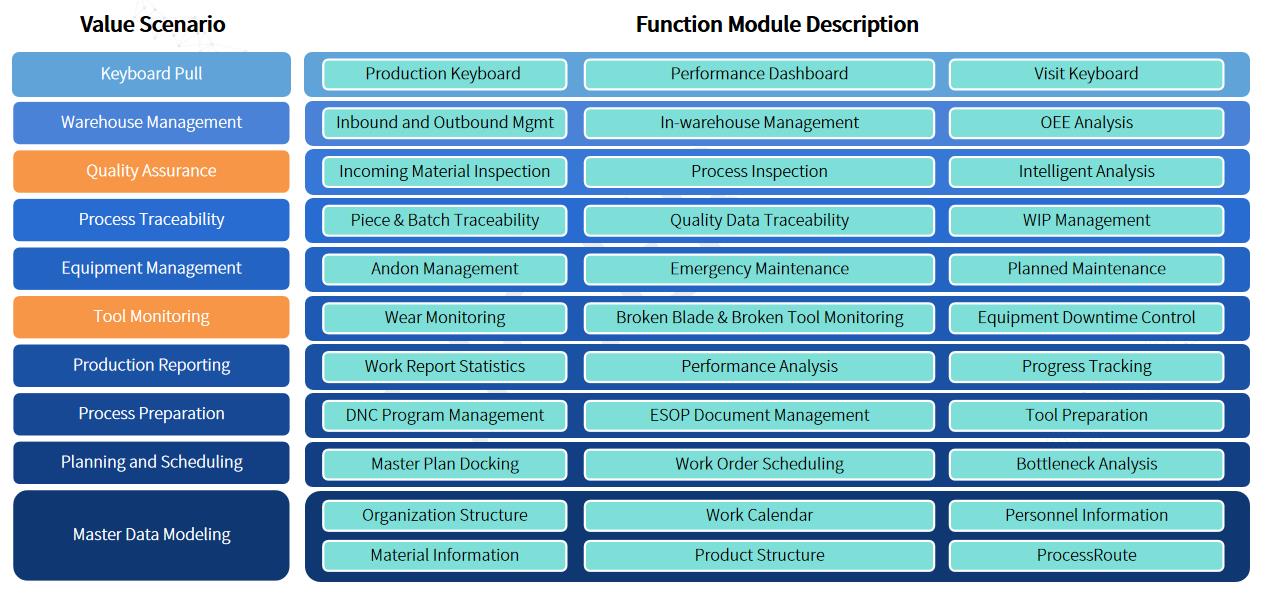

Typical Discrete Industry Digital Factory - Functional Modules
SIGER precision machining digital factory provides full module management, covering personnel performance, work report management, production plan execution tracking, quality management, on-site kanban management, equipment maintenance management, tool full process traceability management, tool monitoring management, DNC program management, factory level modeling, etc.

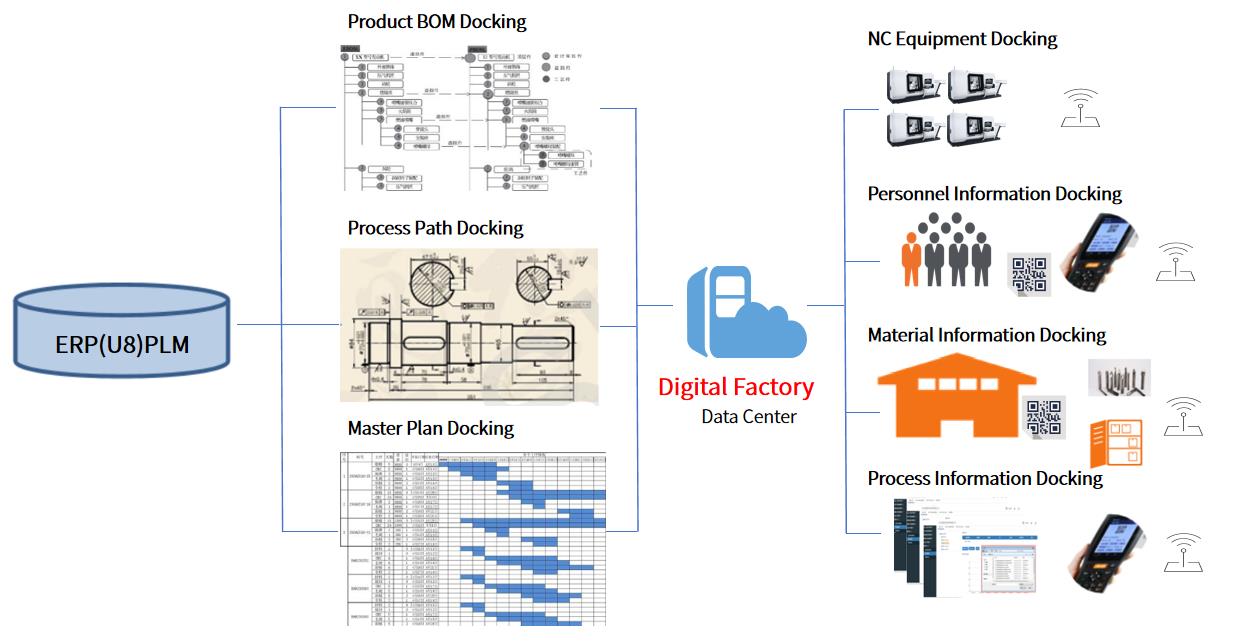

Master Data Connection

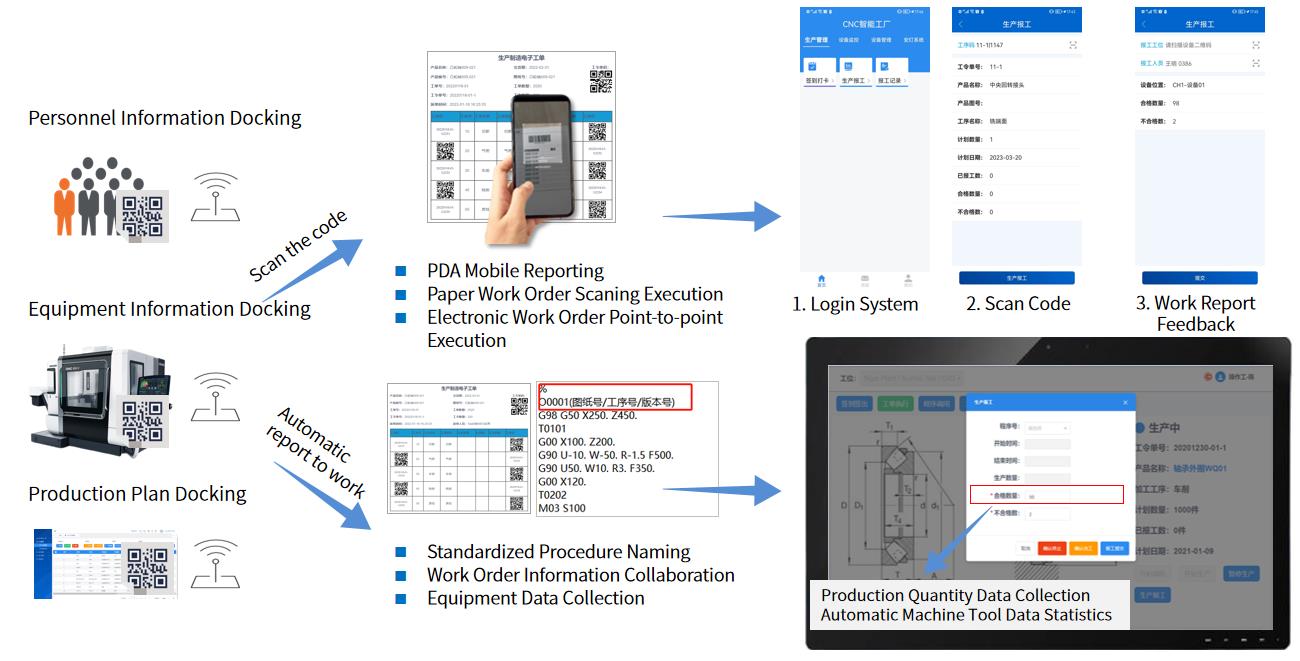

Work Order Reporting
Production report feedback：

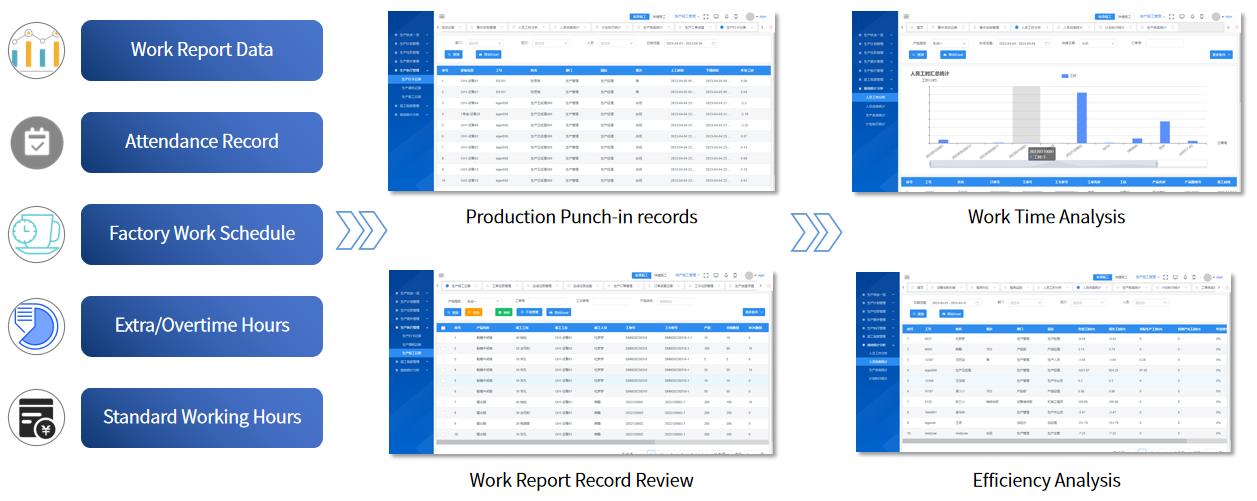

Personnel Performance
Statistical analysis: staff working hours statistics/performance analysis

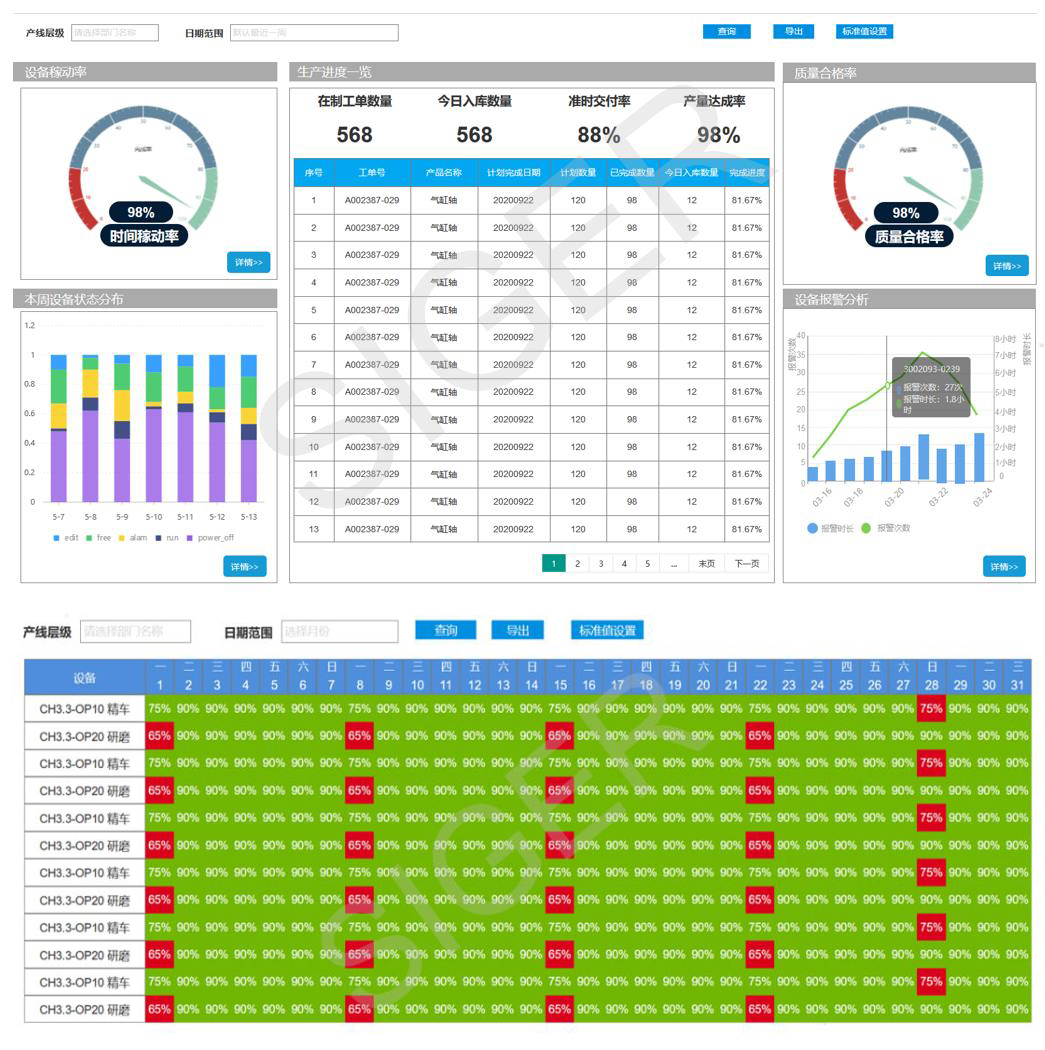

Real-time Equipment Monitoring

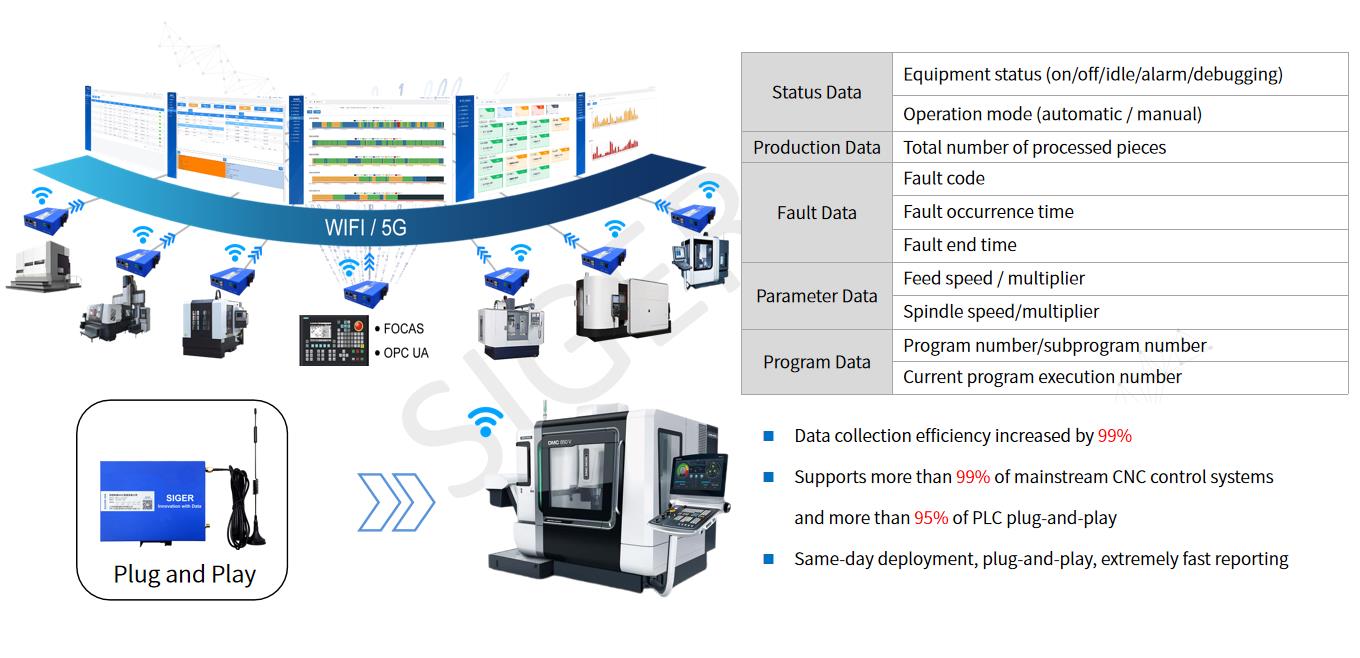

Equipment Data Collection: Equipment IOT
OEE Analysis
Process Management

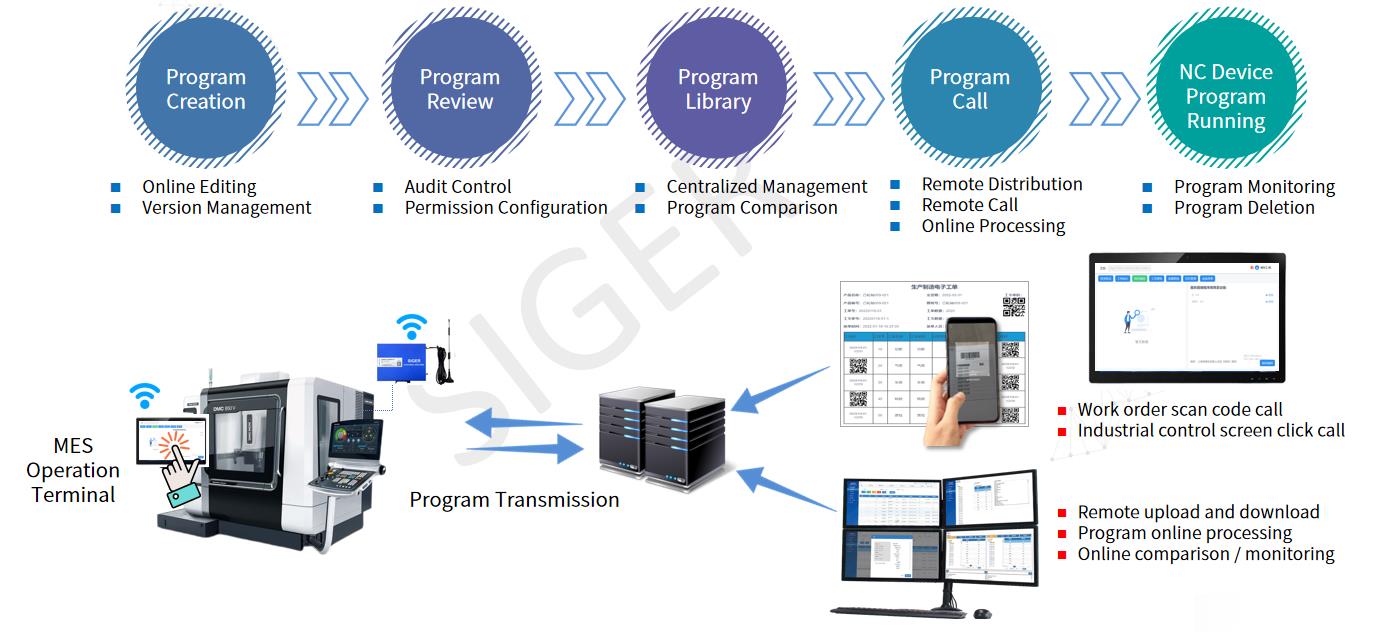

DNC program management:

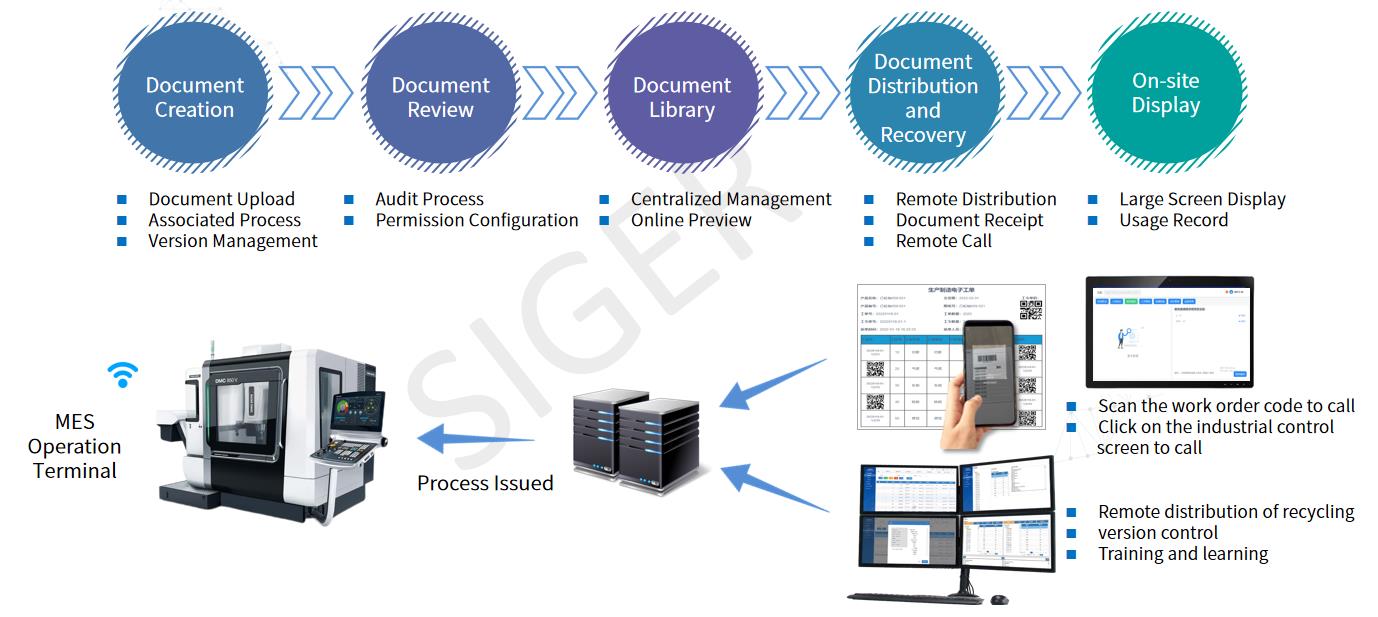

Electronic files:

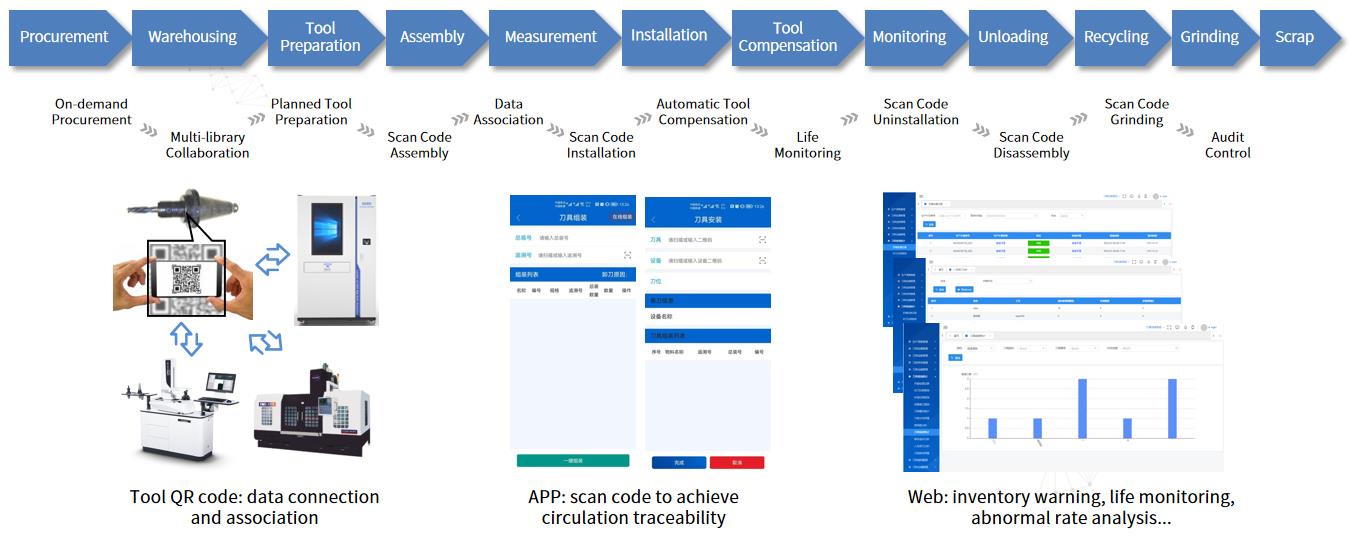

Tool life cycle management process:

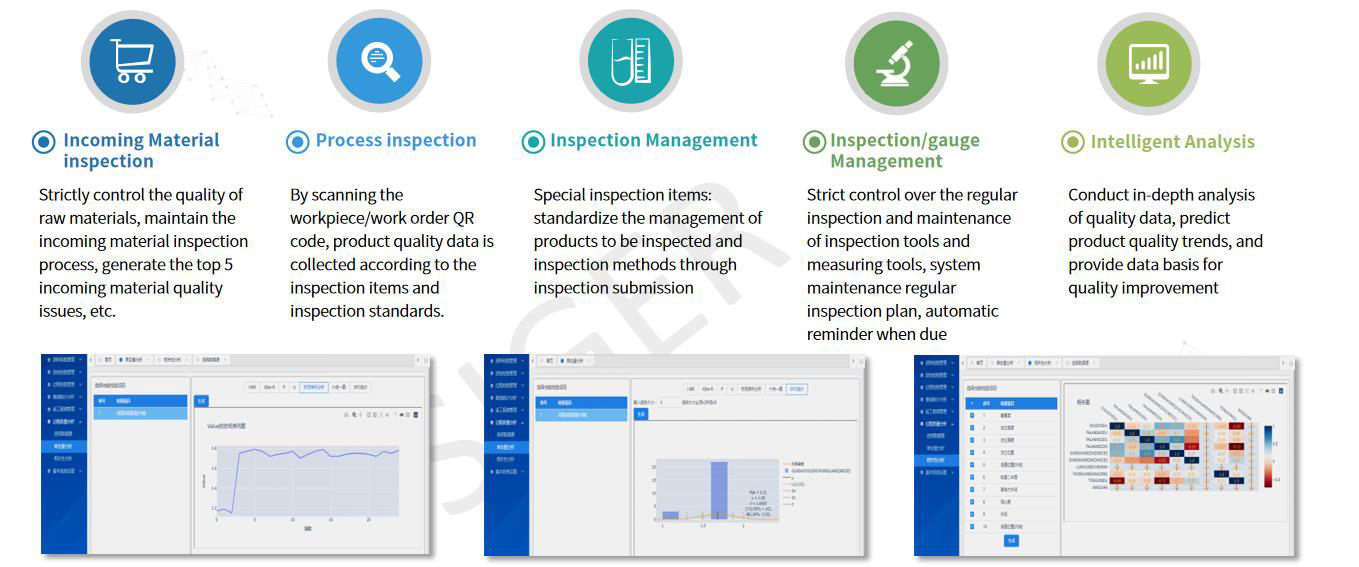

Quality Management
■ Single value analysis, range analysis, mean analysis, time series analysis, CPK calculation, SPC monitoring, correlation analysis...

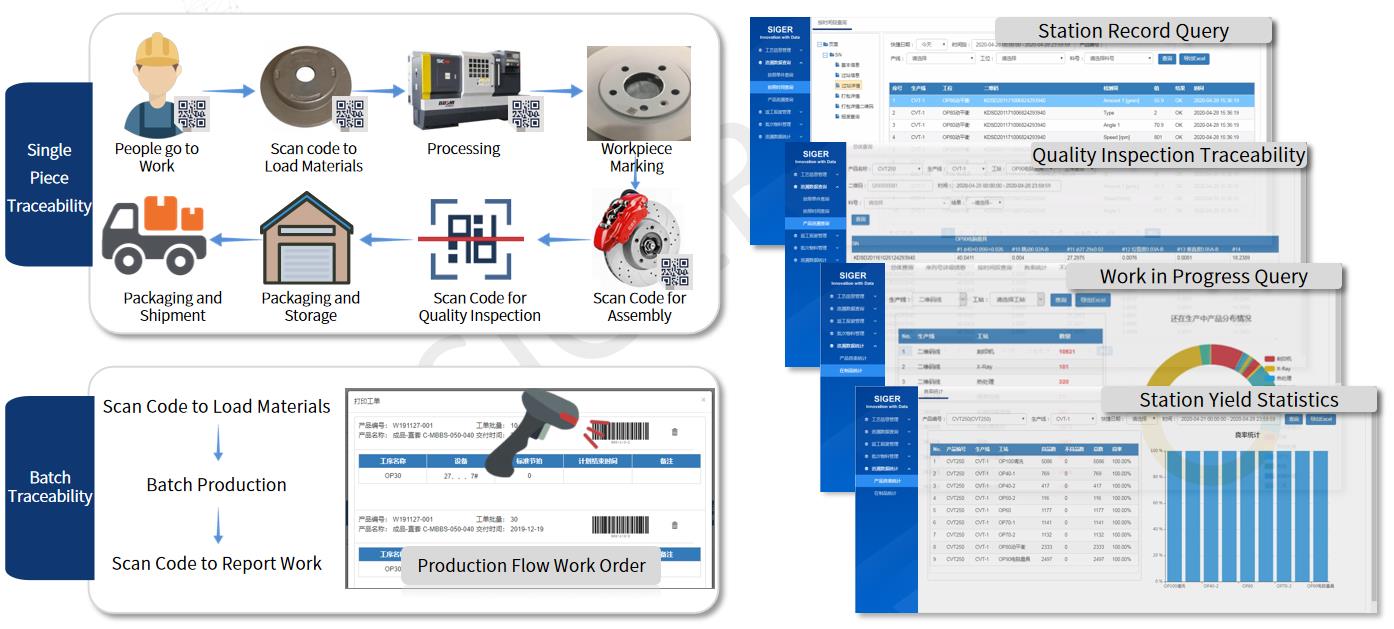

Traceability Management
Traceability management: precise traceability based on workpiece QR codes, and discrete batch traceability based on work order circulation

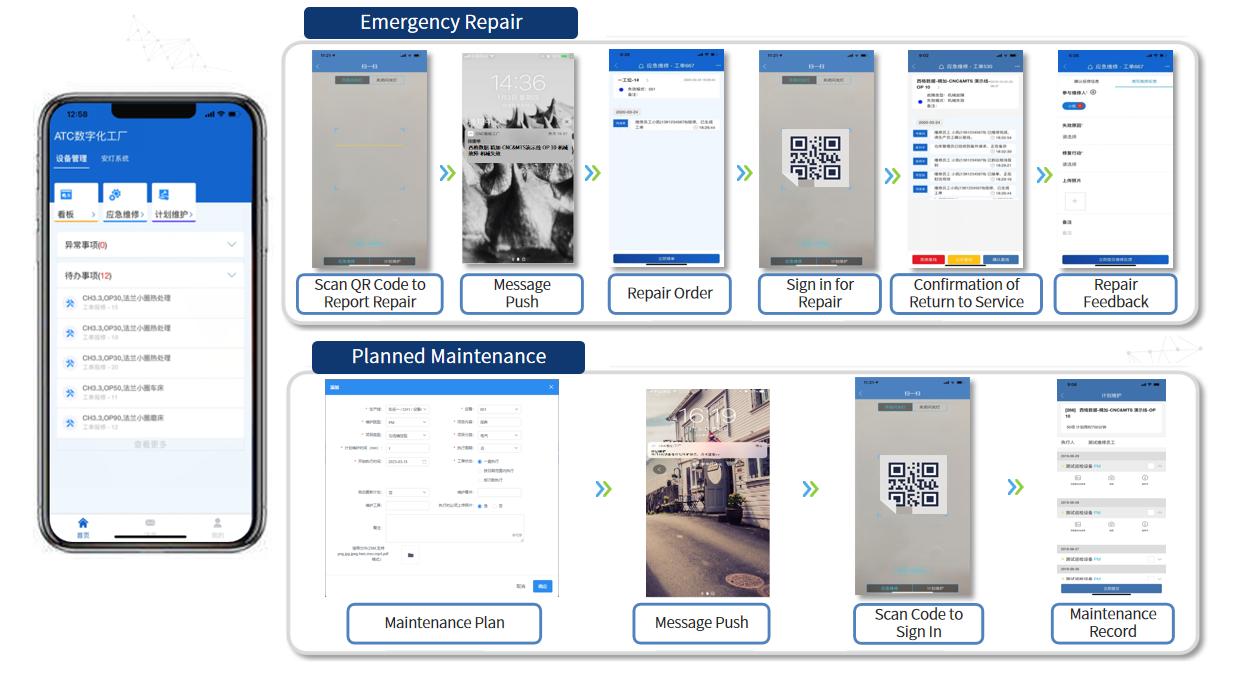

Total Production Maintenance

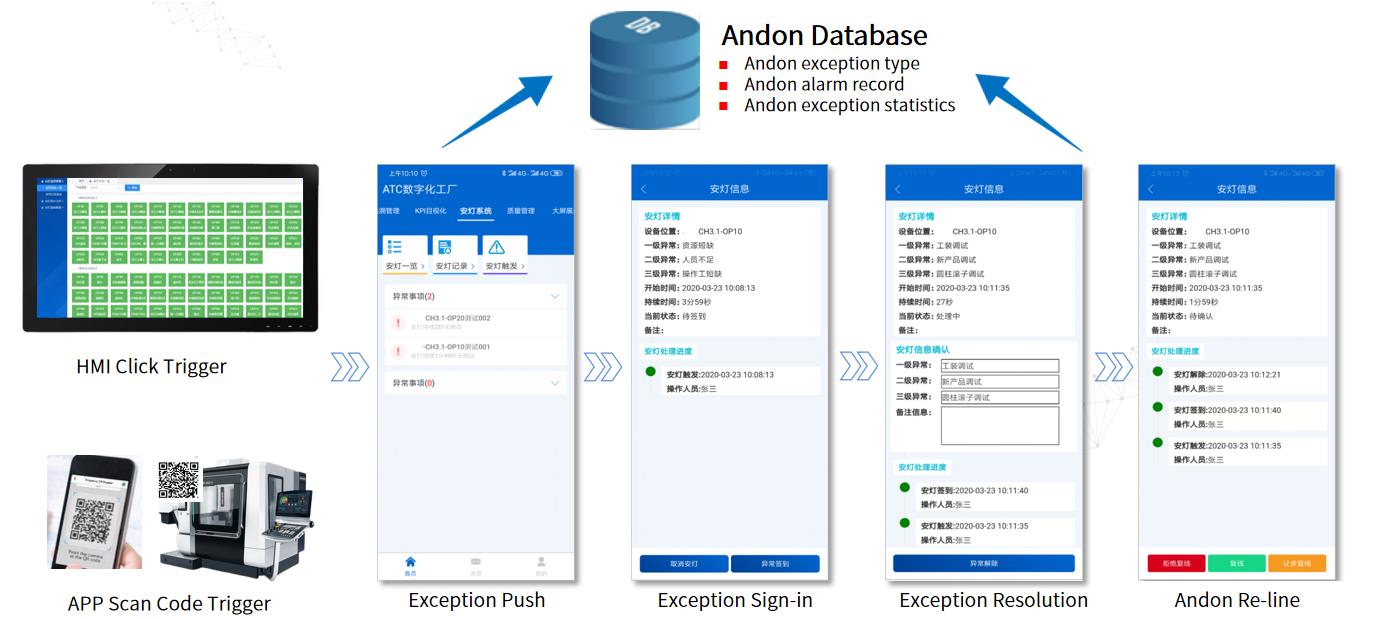

Andon Management
Andon Management: Mobility | Full Process Control | Targeted Push | Hierarchical Reporting
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
