让连续加工“冷热如一”，解密西格数据CMS热补偿系统如何让三轴立式加工中心告别热变形烦恼！
公司动态 日期：2026/06/22
在精密模具、汽车制造、航空航天等高精度加工场景中，三轴立式加工中心凭借高刚性、抗扭减震等结构优势，成为众多企业的核心装备。然而，即便机床设计再优秀，也躲不过一个持续存在却难以察觉的精度杀手——热变形。
长时间连续加工、环境温度昼夜变化、甚至批量生产中的换料间歇，都会导致丝杠、主轴等关键部件产生不均匀热膨胀，使定位精度悄然漂移。传统应对方式要么被动等待热机，要么依赖人工经验反复对刀，既拉低了效率，也难以保证全天候加工一致性。
西格数据为其部署CMS热误差补偿管理系统，通过全域温度感知+AI动态建模+实时补偿干预，让这台三轴立式加工中心在任何生产节奏下，始终保持稳定、精准的输出。
一、直击痛点：三轴立式加工中心的“热漂移”困局
三轴立式加工中心常用于高刚性要求的精密零件加工。设备在冷态启动时精度可达微米级，但连续运行数小时后，X、Y、Z轴丝杆温升明显。实测显示：温升10℃工况下，定位误差波动可超过50~80μm——直接导致：
❌ 预热等待，浪费产能：每次开机需空跑1-2小时进行热机，等待机床达到热平衡后才能开始精加工，严重拉低设备综合利用率。
❌ 间歇性温变，精度不稳：换刀、暂停、上下料等间歇操作带来的温升、温降，导致同一程序在不同时段产出的零件尺寸不一致，返工率居高不下。
❌ 经验补偿，难以标准化：老师傅凭手感或经验手动调整刀补，不仅依赖个人技能，更难以应对复杂多变的热场分布。
二、智能解方：SIGER CMS热补偿系统为三轴立式加工中心装上“热感知大脑”
西格数据CMS热误差补偿管理系统，是一套由“智能感知、AI预测、实时闭环”构成的软硬一体化系统，精准直击热误差补偿的核心诉求：
✅ 结构特性深度耦合的温度采集与补偿算法：在X、Y、Z轴丝杆等关键热源位置部署高精度PT100温度传感器，实时采集温度数据，结合机床三轴结构特性、运动参数及XYZ空间标定系统，将数据上报至E3+边缘计算系统进行动态分析，建立专属热误差补偿模型。模型与机床本体深度耦合，补偿更精准、响应更及时。
✅ 全场景自适应热误差智能修正：系统智能应对季节性温差、昼夜温差、长时间连续加工及批量加工中的换料间歇等复杂场景。持续监测温度变化，动态调整补偿参数，避免因温升或温降导致的重新对刀或精度偏差。实际应用中，整体热变形误差降低70%+，全天候首件与末件加工一致性显著提升。
✅ 模块化部署与多系统兼容的扩展能力：系统采用集成化设计，完美适配三轴立式加工中心的数控系统，2周内完成硬件安装、通道调试与热补偿模型标定，不影响现有生产任务。基于4合1解决方案架构，可拓展TMS刀具监控、TCS碰撞保护、AMS效率优化系统，实现从热补偿管理到加工全过程智能管理升级。同时兼容多品牌数控系统，广泛适用于各类加工中心。

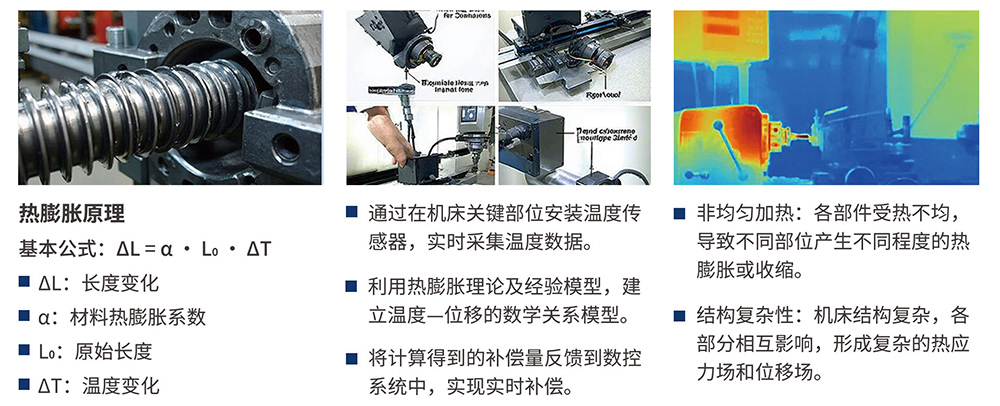

（热膨胀原理及功能实现图）
三、超越数据：为客户带来的全景价值
西格数据CMS热补偿系统在三轴立式加工中心上落地验证后，为客户带来了可量化的综合效益：
3.1效率革命，成本锐减：无需长时间热机，开机即可进入高精度加工，设备综合利用率（OEE）提升最高可达20%以上。
3.2精度跃升，良品保障: 热致形变量降低85%+，跨班次加工尺寸一致性大幅提高，废品率显著下降；
3.3 快速部署，2周交付：产品模块化程度高，标准化实施流程可在2周内完成硬件安装、通道调试与热补偿模型标定，不增加操作复杂度，老员工和新手均能轻松驾驭。
3.4沉淀数字资产，迈向预测制造：持续积累的温度-形变数据流，为更深度的工艺优化和数字孪生构筑底层数据基座，驱动企业打破经验束缚，实现从“被动响应”到“主动预见”的模式跃迁。
四、广泛验证：赋能高端制造未来
西格数据的热补偿技术已在航空航天、精密模具、汽车零部件、医疗器械等对精度有极致要求的行业成功应用。它不仅是解决误差的工具，更是驱动企业走向“认知制造”、“预测制造”的关键引擎。
从捕捉温度的细微变化，到预见并抵消误差于未然，西格数据正重新定义精密加工的边界。让每一台机床，在任何时刻，都稳定如初——这已不再是愿景，而是正在发生的工业现实。
SIGER CMS热补偿管理系统适配范围：
适用机床类型：数控车床、车铣复合、加工中心、龙门等多种切削机床
适用加工方式：车削| 铣削 | 齿面加工 | 曲面加工等
选择西格数据，助力企业实现降本增效，无忧生产！
Enabling continuous machining with consistent temperature control:
Unveiling how the SIGER Data thermal compensation system helps three-axis vertical machining centers say goodbye to thermal deformation problems!
Company News Date：2026/06/22
In high-precision machining scenarios such as precision mold making, automotive manufacturing, and aerospace, three-axis vertical machining centers have become core equipment for many companies due to their high rigidity, torsional resistance, and vibration damping. However, even with excellent machine tool design, they cannot escape a persistent yet difficult-to-detect precision killer—thermal deformation.
Prolonged continuous machining, diurnal temperature variations, and even material changeover intervals during batch production can cause uneven thermal expansion in critical components such as lead screws and spindles, leading to subtle shifts in positioning accuracy. Traditional solutions either passively wait for the machine to warm up or rely on repeated tool adjustments based on manual experience, which reduces efficiency and makes it difficult to guarantee consistent machining across all weather conditions.
SIGER Data deployed a Thermal Error Compensation Management System (CMS) for this three-axis vertical machining center. Through comprehensive temperature sensing, AI dynamic modeling, and real-time compensation intervention, it ensures stable and accurate output regardless of the production rhythm.
1. Addressing the Pain Point: The "Thermal Drift" Dilemma of Three-Axis Vertical Machining Centers
Three-axis vertical machining centers are commonly used for machining precision parts requiring high rigidity. While the equipment can achieve micron-level accuracy during cold starts, after several hours of continuous operation, the X, Y, and Z axis lead screws experience significant temperature rises. Actual measurements show that under a 10°C temperature rise, positioning error fluctuations can exceed 50-80μm—directly leading to:
❌ Preheating delays and wasted capacity: Each startup requires 1-2 hours of idle operation to warm up the machine before finishing can begin, severely reducing overall equipment utilization.
❌ Intermittent temperature fluctuations and unstable accuracy: Temperature rises and falls caused by intermittent operations such as tool changes, pauses, and loading/unloading result in inconsistent part dimensions produced at different times for the same program, leading to high rework rates.
❌ Experience-based compensation and difficulty in standardization: Experienced operators manually adjust tool compensation based on feel or experience, relying not only on individual skill but also making it difficult to cope with complex and variable thermal distributions.
2. Intelligent Solution: SIGER's thermal compensation system equips three-axis vertical machining centers with a "thermal sensing brain"
SIGER Data Thermal Error Compensation Management System (CMS) is an integrated hardware and software system comprised of "intelligent sensing, AI prediction, and real-time closed-loop" technology, precisely addressing the core requirements of thermal error compensation:
✅ Temperature Acquisition and Compensation Algorithm Deeply Coupled with Structural Characteristics
High-precision PT100 temperature sensors are deployed at key heat source locations such as the X, Y, and Z axis lead screws to collect temperature data in real time. Combined with the machine tool's three-axis structural characteristics, motion parameters, and XYZ spatial calibration system, the data is reported to the E3+ edge computing system for dynamic analysis, establishing a dedicated thermal error compensation model. The model is deeply coupled with the machine tool body, resulting in more accurate compensation and more timely response.
✅ Full-Scene Adaptive Intelligent Thermal Error Correction
The system intelligently handles complex scenarios such as seasonal temperature differences, diurnal temperature differences, long-term continuous processing, and material change intervals during batch processing. It continuously monitors temperature changes and dynamically adjusts compensation parameters to avoid tool resetting or accuracy deviations caused by temperature rises or falls. In practical applications, overall thermal deformation error is reduced by 70%+, and the consistency between the first and last parts processed throughout the day is significantly improved.
✅ Modular Deployment and Multi-System Compatibility
The system adopts an integrated design, perfectly adapting to the CNC systems of three-axis vertical machining centers. Hardware installation, channel debugging, and thermal compensation model calibration can be completed within two weeks without affecting existing production tasks. Based on a 4-in-1 solution architecture, it can be expanded with Tool Monitoring System (TMS), Collision Protection System (TCS), and Automation Management System (AMS), achieving an upgrade from thermal compensation management to intelligent management of the entire machining process. It is also compatible with multiple brands of CNC systems and is widely applicable to various types of machining centers.
（Thermal Expansion Principle and Functional Implementation Diagram）
3. Beyond Data: Holistic Value for Customers
After its successful implementation and validation on a three-axis vertical machining center, the SIGER Data Thermal Compensation System (CMS) has delivered quantifiable comprehensive benefits to customers:
3.1 Efficiency Revolution, Dramatically Reduced Costs: No need for prolonged warm-up; high-precision machining can begin immediately upon startup, increasing Overall Equipment Effectiveness (OEE) by up to 20% or more.
3.2 Leap in Precision, Guaranteed Quality: Thermally induced deformation is reduced by 85%+, cross-shift dimensional consistency is significantly improved, and scrap rates are significantly reduced.
3.3 Rapid Deployment, 2-Week Delivery: The highly modular product allows for standardized implementation processes, enabling hardware installation, channel debugging, and thermal compensation model calibration within 2 weeks. This does not increase operational complexity and is easily managed by both experienced and novice employees.
4. Extensive Validation: Empowering the Future of High-End Manufacturing
SIGER Data's Thermal Compensation technology has been successfully applied in industries with extremely high precision requirements, such as aerospace, precision molds, automotive parts, and medical devices. It's not just a tool for solving errors, but a key engine driving enterprises towards "cognitive manufacturing" and "predictive manufacturing".
From capturing subtle temperature changes to anticipating and mitigating errors before they occur, SIGER Data is redefining the boundaries of precision machining. Ensuring that every machine tool remains stable at all times—this is no longer a vision, but an industrial reality.
SIGER Thermal Compensation Management System Compatibility:
Applicable Machine Tool Types: CNC lathes, milling-turn centers, machining centers, gantry milling machines, and other cutting machine tools.
Applicable Machining Methods: Turning | Milling | Gear Surface Machining | Surface Machining, etc.
Choose SIGER Data to help your company reduce costs, increase efficiency, and achieve worry-free production!
