From "Wait-in" to "Instant Start-up": Unveiling how the SIGER Data Thermal Compensation System helps gantry machining centers achieve a win-win situation in efficiency and precision!

Company News       Date：2026/06/01

In large precision component machining workshops, gantry machining centers, with their high rigidity, long stroke, and strong cutting capabilities, have become core equipment for mold making, aerospace structural components, and large box-shaped parts. However, this "heavy-duty weapon" has long been plagued by an invisible yet real precision killer during high-intensity continuous machining—thermal deformation.

During prolonged operation, the machine tool spindle, leadscrew, and guideways continuously heat up, causing thermal expansion of structural components and resulting in drift in machining accuracy. Traditional solutions involve a 2-3 hour "warm-up wait" until the machine temperature stabilizes before resuming operation, which lengthens the production cycle and cannot completely eliminate dimensional fluctuations caused by intermittent temperature rises and falls.

SIGER Data deployed a Thermal Error Compensation Management System (Thermal  CMS) for this gantry machining center. Through comprehensive temperature sensing, AI dynamic modeling, and real-time compensation intervention, this system allows the gantry machining center to move beyond "warm-up waiting," achieving immediate usability and continuous high-precision stable machining.

1. Addressing the Pain Points: The "Precision Drift" Dilemma of Large Gantry Machining Centers

Gantry machining centers are commonly used for machining long-stroke, high-precision parts such as large molds and aerospace frame beams. When the equipment is cold-started, the positioning accuracy can reach the micrometer level; however, after several hours of continuous operation, the temperature of key transmission components rises significantly. Actual measurements show that under a 10°C temperature rise, the positioning error fluctuation can exceed 80μm—for workpieces that are often thousands of millimeters in diameter, the risk of dimensional deviations increases dramatically, presenting three major challenges on-site:

❌ Warm-up waiting time, lengthened cycle time: Each startup requires 2-3 hours of idle operation for warm-up, waiting for the machine to reach thermal equilibrium before finishing can begin, severely reducing the overall utilization rate of the equipment.

❌ Intermittent temperature changes, unstable precision: Temperature rises and falls caused by intermittent operations such as tool changes, pauses, and loading/unloading result in inconsistent part dimensions produced at different times for the same program, leading to a high rework rate.

❌ Experience-based compensation is difficult to standardize: Experienced craftsmen manually adjust tool compensation based on feel or experience, which not only depends on personal skills but also makes it difficult to cope with complex and ever-changing thermal field distribution.

2. Intelligent Breakthrough: The Thermal Compensation System Equips Gantry Milling Machines with a "Thermal Sensing Brain"

The SIGER Data Thermal Error Compensation Management System (CMS) is an integrated hardware and software system comprised of "intelligent sensing, AI prediction, and real-time closed-loop control", precisely addressing the core requirements of thermal error compensation:

✅ High-Precision Global Temperature Field Sensing

PT100 temperature sensors are deployed at key heat source locations on the machine tool, such as the X, Y, and Z axis lead screws, spindle, and guideways. These sensors collect temperature data in real time and report it to the E3+ edge computing system, constructing a "body temperature" monitoring network for the machine tool.

✅ AI-Powered Dynamic Thermal Error Modeling

The system simultaneously combines XYZ spatial calibration data with ambient temperature changes. Based on intelligent algorithms, it autonomously establishes a precise mathematical model between temperature changes and thermal elongation of each axis, continuously learning and optimizing online.

✅ Real-Time Dynamic Compensation Execution

The system calculates the current thermal deformation in milliseconds and automatically sends reverse compensation commands to the CNC system, instantly offsetting thermally induced displacement and ensuring the machine tool always operates at "virtually cold" precision.

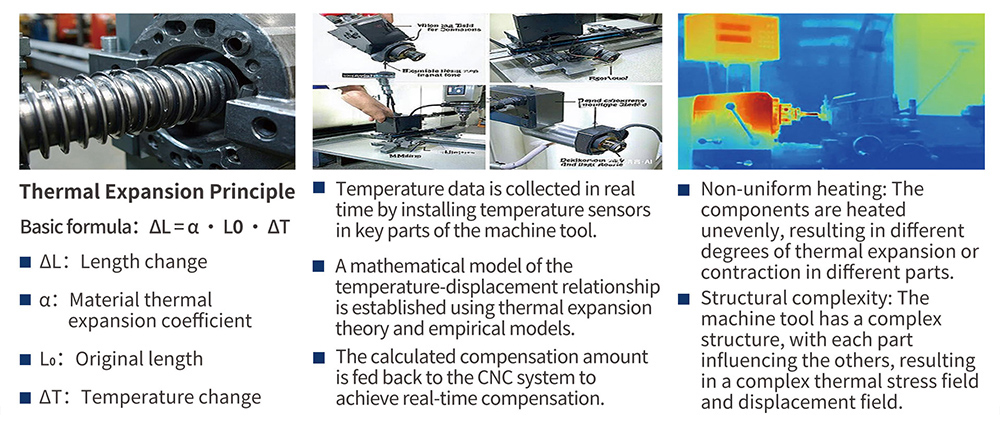

（Thermal Expansion Principle and Functional Implementation Diagram）

3. Beyond Data: Holistic Value for Customers

After its implementation and verification on a gantry machining center, the SIGER Data thermal compensation system has brought quantifiable comprehensive benefits to customers:

3.1 Efficiency Revolution, Sharp Cost Reduction: Eliminating unnecessary machine tool preheating processes by 2-3 hours allows for immediate high-precision machining upon startup, increasing overall equipment efficiency (OEE) by up to 20% or more.

3.2 Precision Leap, Guaranteed Good Product Quality: The system continuously monitors and compensates for the effects of temperature rises and falls during intermittent machining, reducing thermally induced deformation by over 70%. It significantly improves the stability of critical dimensions during long-stroke machining, resulting in a substantial decrease in scrap rate.

3.3 Rapid Deployment, 2-Week Delivery: The product's high modularity and standardized implementation process allow for hardware installation, channel debugging, and thermal compensation model calibration within 2 weeks, without increasing operational complexity. Both experienced and novice employees can easily operate the system.

4. Extensive Validation: Empowering the Future of High-End Manufacturing

SIGER Data's Thermal Compensation technology has been successfully applied in industries with extremely high precision requirements, such as aerospace, precision molds, automotive parts, and medical devices. It's not just a tool for solving errors, but a key engine driving enterprises towards "cognitive manufacturing" and "predictive manufacturing".

From capturing subtle temperature changes to anticipating and mitigating errors before they occur, SIGER Data is redefining the boundaries of precision machining. Ensuring that every machine tool remains stable at all times—this is no longer a vision, but an industrial reality.

SIGER Thermal Compensation Management System Compatibility:

Applicable Machine Tool Types: CNC lathes, milling-turn centers, machining centers, gantry milling machines, and other cutting machine tools.

Applicable Machining Methods: Turning | Milling | Gear Surface Machining | Surface Machining, etc.
