Still worried about tool breakage and machine collisions? | SIGER Data's "one set of hardware" enables dual monitoring

Helping to reduce costs and increase efficiency in 4-axis composite machining!

Company News       Date：2026/05/25

In high-end precision manufacturing workshops for shafts and valves, 4-axis composite machine tools (dual tool post, dual spindles, upper and lower power heads) have become core equipment for high-precision parts machining due to their high rigidity, high degree of integration, and high automation. However, this "composite machining weapon" also faces two of the most challenging and costly risks in long-term unmanned, high-frequency continuous production:

◆ Tool malfunction: Chipping and breakage are unpredictable; once they occur, batch workpieces are scrapped, tools are worn out, and even the spindle is damaged.

◆ Collision risk: During automated loading and unloading processes, clamping anomalies and programming errors are difficult to completely eliminate. A single millisecond-level collision can lead to machine repair or even complete spindle failure.

Under traditional solutions, companies are often forced to "procure and deploy separately": one set of tool monitoring and one set of collision protection. This results in complex wiring, long debugging cycles, and incompatibility between the two systems, increasing the burden on workshop maintenance.

Today, SIGER Data's Tool Monitoring + Collision Protection integrated system solution has arrived, ending this "two-front battle." One set of hardware, two core functions, and two weeks of deployment enable this 4-axis composite machine tool to truly achieve "worry-free processing".

1. Addressing the Pain Points: Two Major Concerns in High-Precision Axial Valve Machining

Before the introduction of integrated intelligent sensing systems, while 4-axis composite machine tools boast outstanding performance, they still face the following challenges in actual operation:

❌ Unknown Tool Status: Wear and chipping could only be detected by sound, sparks, or random checks after machining, lacking real-time warnings. The left and right spindles and upper and lower power heads simultaneously participate in complex machining processes, involving numerous tool types and frequent tool changes. Traditional methods rely on experience or spot checks, failing to monitor the wear and breakage of each tool in real time. If a broken tool is not detected promptly, subsequent processes will scrap multiple high-value axial valve products.

❌ Lack of Real-Time Collision Protection: In automated production lines, workpiece clamping anomalies and program coordinate deviations occasionally occur. Traditional systems have limited response speeds (tens of milliseconds or even slower), while the time from collision occurrence to damage is often only a few milliseconds. A single accident can result in spindle repair costs reaching tens of thousands of yuan, with even greater downtime losses.

Both of these risks, if out of control, will directly impact delivery cycles and profits.

2. Intelligent Breakthrough: SIGER Data's Two-in-One System Equips Composite Machine Tools with an "Intelligent Sensing and Protective Dual Core"

SIGER Data's TMS+TCS two-in-one solution, based on high-precision power monitoring and vibration monitoring, integrates tool monitoring and collision protection onto a single hardware platform through multi-channel independent real-time data acquisition and deep integration of edge computing units and AI algorithms:

✅ Tool Monitoring System (TMS)

"Multi-channel independent sentinels",The system is equipped with independent data acquisition units for the left spindle, right spindle, upper power head, and lower power head. These four channels operate in parallel without interference, synchronously monitoring the tool load and status of each channel in real time. It accurately identifies anomalies such as chipping and breakage; once a threshold is triggered, it immediately alarms or automatically prompts for tool change, eliminating the need for manual monitoring; achieving unmanned real-time monitoring and eliminating the crude management approach of "use it until it breaks down".

✅ Spindle Collision Protection System (TCS)

"Active protection" within 0.25 milliseconds, Based on high-precision vibration sensors, it detects the reverse impact threshold at the moment of a collision and triggers an emergency stop of the machine tool within 0.25 milliseconds. Minimizes collision damage; effectively protects the spindle, turret, workpiece, and fixture; especially suitable for automated production lines where manual intervention is not possible.

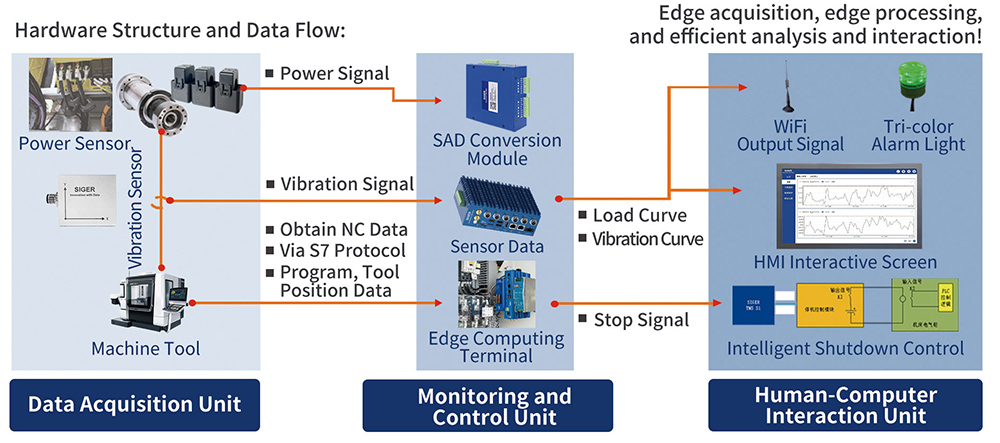

（Tool Monitoring and Collision Protection Principle Diagram）

3. Beyond Data: Holistic Value for Customers

The value of SIGER Data's Tool Monitoring and Collision Protection Solution goes far beyond simply "protecting against anomalies":

3.1 Eliminating Batch Scrap: Real-time tool monitoring immediately stops the machine or alerts the operator to replace the tool after a breakage, preventing continuous processing of scrap in subsequent stages. A single incident can save thousands to tens of thousands of yuan in material and rework costs.

3.2 Reducing Maintenance Costs: Minimizes spindle repairs, turret replacements, and tool wear caused by collisions, saving tens of thousands of yuan in hidden expenses per machine per year.

3.3 Supporting Unmanned Production: The system automatically monitors, provides early warnings, and automatically stops emergency shutdowns. Operators do not need to be on duty at all times, making "lights-out factories" a reality at night.

3.4 Rapid Deployment and Extreme Ease of Use: Hardware installation, channel debugging, and threshold calibration are completed within two weeks, without increasing operational complexity. Both experienced and novice employees can easily operate the system.

4. Extensive Validation: Empowering the Future of High-End Manufacturing

SIGER Data's integrated Tool Monitoring and Collision Protection Solution has been successfully applied to four-axis and five-axis composite machine tools in numerous fields, including automotive parts, aerospace, precision molds, and medical devices.

Based on a single hardware platform, it can be smoothly upgraded to the NC Max four-in-one intelligent control system (Tool Monitoring + Spindle Collision Protection + Adaptive Machining + Thermal Compensation Management) according to enterprise needs, achieving more comprehensive efficiency and accuracy optimization.

SIGER Tool Monitoring and Collision Protection Integrated System Compatibility:

Applicable Machine Tool Types: Machining centers, gantry milling machines, CNC lathes, mill-turn centers, grinding machines, and other cutting machine tools.

Applicable Machining Methods: Turning | Milling | Drilling | Tapping | Gear Surface Machining | Curved Surface Machining, etc.
