Broken blades, machine collisions, thermal deformation, and low efficiency? See how SIGER Data uses a single hardware solution to intelligently control these four major challenges！

Company News       Date：2026/04/13

In precision manufacturing, four major challenges—tool chipping, spindle collision, thermal deformation and drift, and low efficiency—hang like sharp blades over the workshop, threatening to disrupt production and erode profit margins at any moment. Traditional machining methods rely on manual experience and fixed parameters, often proving inadequate in the face of dynamic conditions: conservative feed rates lead to wasted capacity, collision risks cause worker anxiety, thermal errors cast doubt on the delivery of high-precision orders, and tool malfunctions are a hidden killer, resulting in batch scrapping.

How can machine tools be made both "fast" and "stable" under complex conditions? The SIGER Data NC Max intelligent control system integrates four core functions—tool status monitoring, spindle collision protection, adaptive machining, and thermal error compensation management—into a single hardware system, equipping machine tools with a "thinking AI brain" and achieving a leapfrog upgrade from "execution by program" to "intelligent perception and decision-making".

1. Four Major Challenges: Common Challenges in Precision Machining

In real production environments, four major challenges—tool breakage, machine collisions, thermal deformation, and low efficiency—have long plagued traditional machining companies:

❌Tool Breakage Difficult to Prevent, High Risk of Batch Scrap: Abnormal conditions such as tool wear, chipping, and tool breakage are difficult to detect in real time. Traditional methods relying on manual experience are slow to respond, often only discovering the problem after it occurs, leading to batch scrapping of workpieces, spindle damage, and huge economic losses.

❌Machine Collisions Difficult to Avoid, Equipment Safety Unreliable: Sudden situations such as program errors, inaccurate tool setting, abnormal workpiece clamping, or operational errors cannot be avoided by human intervention; the speed of the collision is far slower. A single accidental collision can not only damage expensive tools and workpieces but also cause serious consequences such as spindle damage and structural deformation, resulting in equipment downtime, order delays, and high maintenance costs.

❌Temperature Deformation Difficult to Control, Poor Precision Stability: The temperature rise effect generated by CNC equipment during continuous operation causes structural thermal expansion of key transmission components. Actual measurement data shows that a certain type of vertical machining center exhibits positioning error fluctuations exceeding 80μm under a 10℃ temperature rise. Traditional post-processing inspections cannot prevent defective products, manual experience is insufficient for accurate compensation, and passive cooling measures severely impact production efficiency.

❌Efficiency is difficult to improve, and production potential is suppressed: To avoid risks such as overload and tool vibration, process engineers often adopt conservative feed parameters, causing the equipment to operate in the "safe zone" rather than the "high-efficiency zone" for extended periods. Faced with dynamic conditions such as uneven material allowance, tool wear, and localized hard spots, fixed parameters cannot be adapted in real time, resulting in wasted production capacity and efficiency bottlenecks.

2.Intelligent Breakthrough: One Hardware System Integrating Four Intelligent Control Systems

SIGER Data's 4-in-1 Intelligent Sensing and Decision-Making Machine Tool Solution integrates four intelligent control systems into one hardware system, constructing a complete intelligent closed loop of "data perception → AI decision-making → real-time control → continuous learning".This transforms the traditional judgment process, reliant on human experience, into a calculable model and executable control strategies.

✅Tool Monitoring System (TMS):Equipped with a "health monitor" for each tool. By collecting signals fromover 30 dimensions, including spindle power and vibration, and combining this with AI multi-algorithm fusion analysis, the system monitors tool wear, chipping, and breakage in real time. If the machining state deviates from the safety threshold, it immediately alarms and automatically stops the machine to prevent further losses, achieving a 100% tool breakage and chipping recognition rate, helping companies save over 30% on tooling costs.

✅Machine Tool Spindle Collision Protection System (TCS):"Active protection" within 0.25 milliseconds. Based on high-precision vibration sensors and streaming data processing algorithms, the system constructs an intelligent protection closed loop of "signal perception—AI analysis—real-time intervention—continuous learning".The system identifies the reverse impact threshold at the instant of a collision and triggers an emergency stop within 0.25 milliseconds, nipping collision damage in the bud. This represents a leap from "manual monitoring" to "AI-driven proactive protection",ensuring real-time spindle accuracy and equipment safety.

✅Adaptive Machining System (AMS):The machine tool's "AI process optimization expert".The system senses the cutting load in real time and incorporates a multi-objective optimization AI algorithm to dynamically calculate the safest and most efficient feed rate. When the load is low, it automatically increases speed to unleash potential; when the load approaches the threshold, it intelligently reduces speed to avoid risks. Through smooth feed control, it achieves stable cutting without tool marks in thin-walled and corner areas, optimizing machining cycle time by 15-30%.

✅ Thermal Compensation Management System (CMS):Continuously "locks in" accuracy for precision machining. Temperature sensors are deployed at key heat sources and structural points such as the machine tool spindle, leadscrew, and guideways to collect real-time temperature field data across the entire range. Based on AI learning algorithms, the system autonomously establishes a precise mathematical model between temperature changes and thermal elongation of each axis, calculates the amount of thermal deformation in milliseconds, and sends reverse compensation commands to the CNC system to achieve instant cancellation and precision locking of thermally induced deformation, reducing thermally induced deformation by more than 70%.

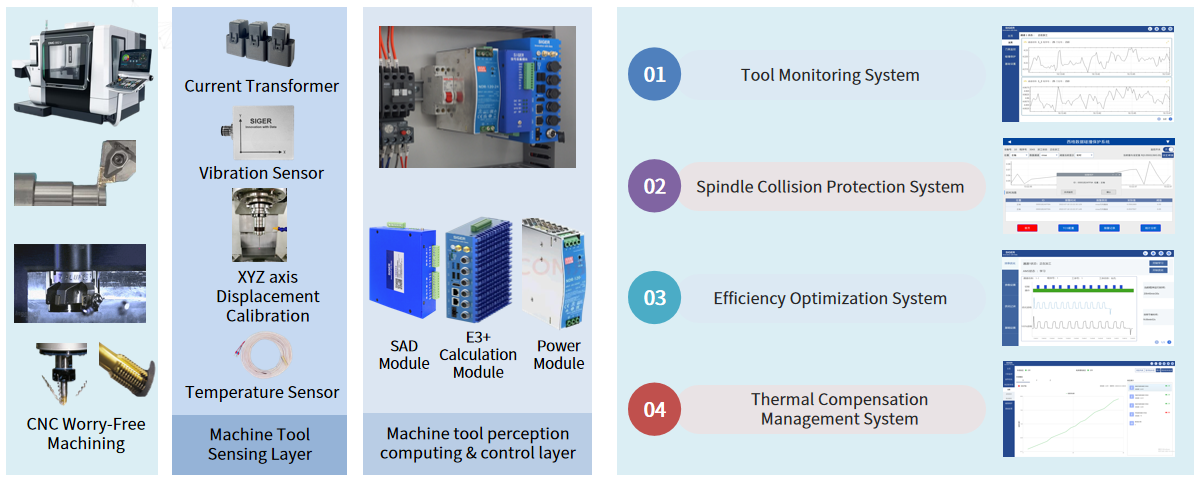

（NC Max Intelligent Control System Hardware Data Flow Diagram）

3. Application Value: Comprehensive Enhancement of Overall Benefits

The SIGER Data NC Max intelligent control system has been successfully implemented and validated at multiple high-end manufacturing customer sites, bringing comprehensive improvements to enterprises in safety, efficiency, quality, and management:

3.1Equipment Safety Upgrade: Real-time identification of collisions, impacts, and abnormal vibrations, achieving a leap from "manual monitoring" to "AI proactive protection",avoiding damage to tools, workpieces, and spindles caused by collisions and tool breakage, and reducing unexpected maintenance costs.

3.2 Production Efficiency Guarantee: Finishing, semi-finishing, and roughing efficiencies are improved by over 10%, 20%, and 30% respectively. Simultaneously, by reducing unplanned downtime and production interruptions and achieving continuous automated operation, the overall utilization rate of equipment is further improved.

3.3 Stable Processing Quality: Accurately identifies tool anomalies, avoiding batch scrap, reducing thermal deformation by 70%-95%, and ensuring the first-pass yield and delivery reliability of high-value workpieces.

3.4 Intelligent management upgrade: realize unmanned monitoring of the entire process, reduce reliance on operator experience, and transform the experience of top technicians into reusable digital models. This promotes the standardization of enterprise processes and knowledge accumulation, supports system-level intelligent decision-making from single machines to production lines, and provides reliable data support for flexible production lines and smart workshops.

4. Quick Overview of the SIGER Data's NC Max Intelligent Control System

The SIGER Data NC Max Intelligent Control System's 4-in-1 solution integrates four core functions—tool monitoring, collision protection, adaptive machining, and thermal error compensation—through a unified hardware platform, comprehensively covering key pain points in precision machining. Enterprises can choose the appropriate combination based on their needs. The system is highly integrated, and testing and deployment can be completed within two weeks for rapid delivery.

Compared to traditional solutions, this integrated design significantly reduces deployment costs and complexity for enterprises. Enterprises no longer need to purchase multiple independent systems for different functions, nor do they need to deal with complex wiring and multi-supplier coordination issues.

SIGER NC Max Intelligent Control System Compatibility:

Applicable Machine Tool Types: Machining centers, gantry milling machines, CNC lathes, mill-turn centers, grinding machines, and other cutting machine tools.

Applicable Machine Tool Types: Widely compatible with various machining centers and CNC machine tools, compatible with mainstream CNC systems such as FANUC, Siemens, and Heidenhain.

Applicable Machining Methods: Turning | Milling | Drilling | Tapping | Gear Surface Machining | Curved Surface Machining, etc.
