Keeping Machine Tools "At the Perfect Temperature"

 Unveiling How SIGER Data Uses AI Thermal Compensation to End Precision Machining Errors

Company News       Date：2026/02/25

In the precision machining center of a customer's mold processing workshop, technicians had long been plagued by a "ghost" problem—when machining a batch of high-precision molds, even though the programs, tools, and materials were exactly the same, the first piece inspected perfectly in the morning, but the key dimensions of the workpieces produced in the afternoon would always be subtly out of tolerance by a few micrometers. This invisible "ghost" was thermal deformation caused by the machine tool's own heat.

Today, with the in-depth application of SIGER Data's intelligent Thermal Error Compensation System, this problem that has plagued the industry for decades has been accurately located and corrected in real time. The table above records not ordinary data, but a complete record of a "dynamic capture" of thermal deformation along the X-axis of the machine tool, revealing how SIGER Data transforms AI prediction into productivity with stable accuracy.

1. Addressing the Pain Point: Thermal Deformation – The “Invisible Killer” of Precision Machining

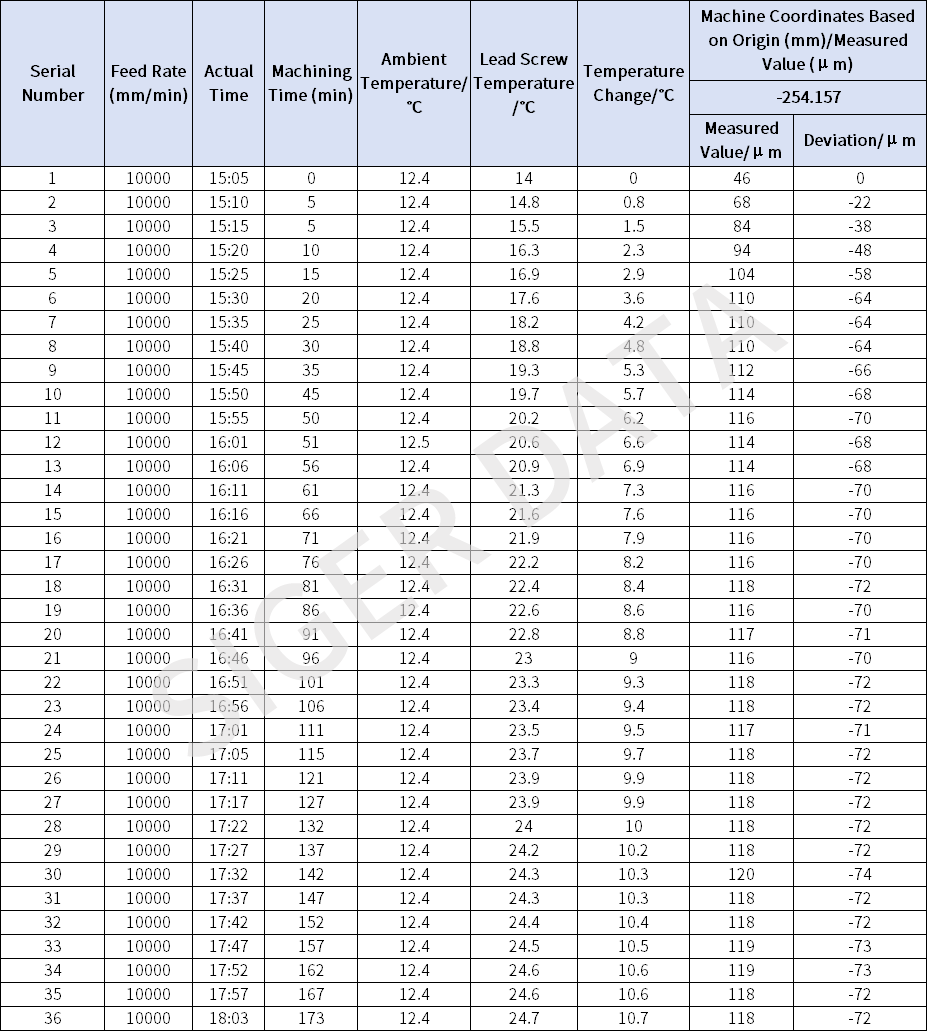

During machine tool operation, components such as lead screws, guideways, and spindles experience thermal expansion due to friction and changes in ambient temperature. For example, data collected in this study shows that during nearly 3 hours of continuous machining, the lead screw temperature steadily increased from 12.2℃ to 24.7℃, a rise of 12.5℃. For a shaft with a stroke of 800mm, this is sufficient to cause a positioning error exceeding 70 micrometers, far exceeding the tolerance limit of precision machining.

Traditional solutions are passive and inefficient: prolonged preheating consumes a large amount of electricity and manpower; the construction and maintenance costs of temperature-controlled workshops are high, and manual compensation after passive measurement is not only lagging but also heavily reliant on the experience of experienced operators, making it difficult to replicate on a large scale.

2. Intelligent Solution: The Core Engine of SIGER Data's Thermal Compensation System

SIGER Data's Thermal Compensation Management System (CMS) solution is an integrated hardware and software system comprised of "intelligent sensing, AI prediction, and real-time closed-loop control." The data table above vividly illustrates its core working principle:

✅ High-Sensing Network: High-precision temperature sensors are deployed at key locations on the leadscrew to collect real-time temperature changes (e.g., "Leadscrew Temperature/°C" in the table), constructing a "body temperature" monitoring network for the machine tool.

✅ AI Prediction Model: The system's built-in thermodynamic-deep learning hybrid model can predict thermal errors in advance based on real-time temperature ("Temperature Change/°C") and the machine tool's motion state. The "Model Value/μm" column in the table represents the AI model's real-time calculation of thermal expansion under the current state.

✅ Closed-Loop Compensation Execution: The predicted error value ("Model Value/μm") is converted in real-time into compensation commands ("Compensation Value/μm") recognizable by the CNC system, dynamically correcting the coordinates during machining to ensure the tool tip always stays on the "correct" path.

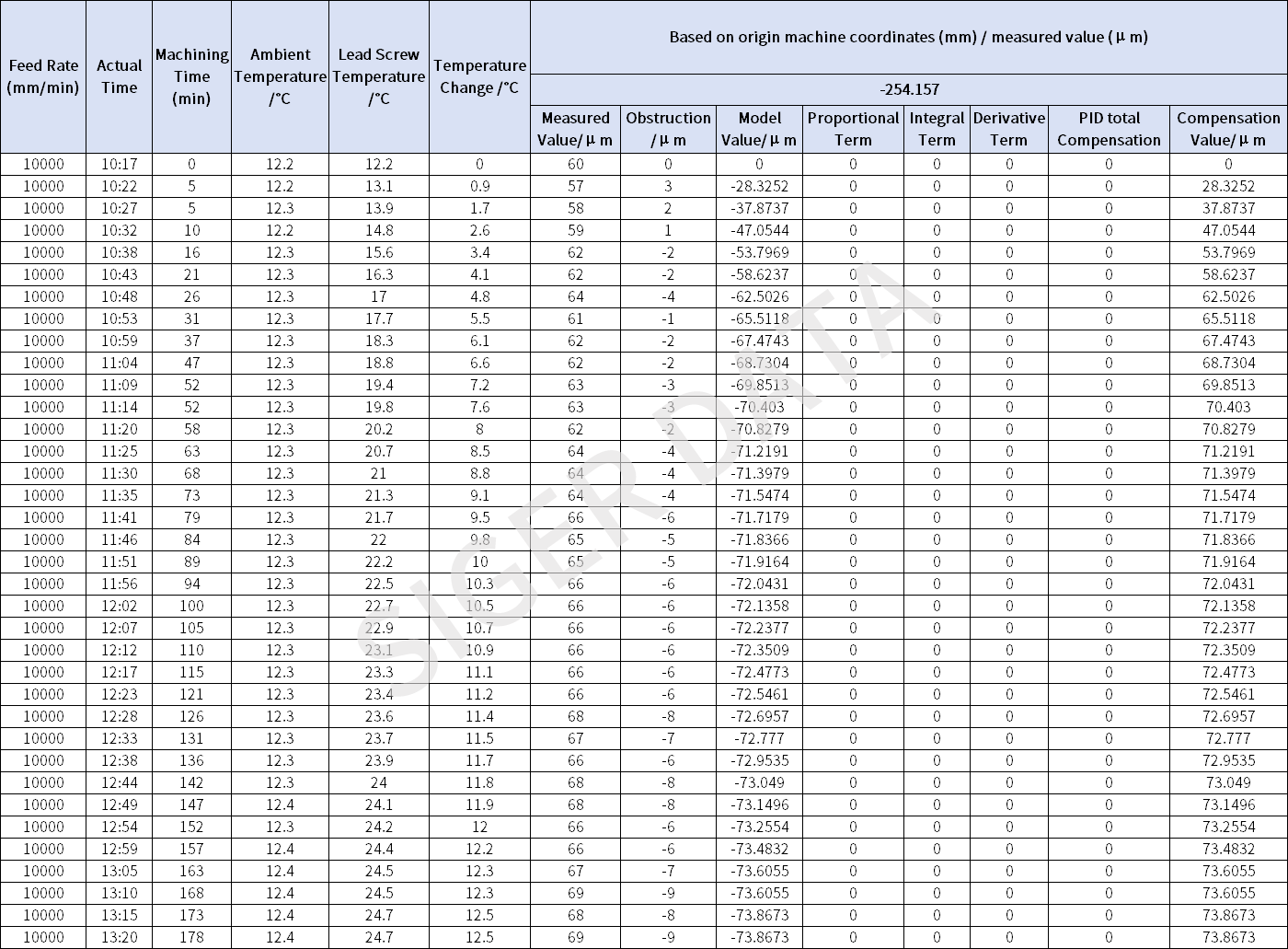

The Victory of Data: As shown in the table, in the initial stage of processing (temperature change of 0.9℃), the system predicted an error of -28.3μm and initiated compensation. As the temperature continued to rise, the compensation amount increased precisely and synchronously, reaching -73.8μm when the temperature stabilized. Throughout the process, the actual positioning deviation ("deviation/μm") was successfully controlled within 9 micrometers, and the overall thermal deformation was reduced by up to 88%, demonstrating significant improvement in accuracy and stability control after thermal compensation.

3. Beyond Data: Panoramic Value for Customers

The value of this system goes far beyond the improvement in single-processing accuracy; it brings quantifiable and comprehensive advancements to enterprises:

3.1 Leap in Precision, Guaranteed Quality: Reduces the scrap rate caused by thermal deformation to near zero, especially ensuring the consistency of the first and last pieces in all-weather, multi-shift production, safeguarding the brand reputation of customers.

3.2 Efficiency Revolution, Drastic Cost Reduction: Ends the hours-long machine tool warm-up wait, allowing for immediate full-precision production upon startup, with an overall equipment efficiency (OEE) increase of up to 20% or more.

3.3 Reduced Energy Consumption, Green Intelligent Manufacturing: Eliminates the need for energy-intensive constant-temperature workshops, enabling ultra-precision machining even in natural environments, significantly reducing enterprise operating costs and carbon emissions.

3.4 Digital Foundation, Intelligent Foresight: Continuously accumulating temperature-error-compensation data streams build valuable data assets for predictive maintenance, process optimization, and even digital twins.

4. Extensive Validation: Empowering the Future of High-End Manufacturing

SIGER Data's Thermal Compensation Tchnology has been successfully applied in industries with extremely high precision requirements, such as aerospace, precision molds, automotive parts, and medical devices. It is not only a tool for solving errors, but also a key engine driving enterprises towards "cognitive manufacturing" and "predictive manufacturing".

 From capturing subtle temperature changes to anticipating and mitigating errors before they occur, SIGER Data is redefining the boundaries of precision machining. Ensuring that every machine tool remains stable at all times—this is no longer a vision, but an industrial reality in progress.

SIGER Data's Thermal Compensation Management System (CMS) Compatibility:

Applicable Machine Tool Types: CNC lathes, milling-turn centers, machining centers, gantry milling machines, and other cutting scenarios.

Applicable Machining Methods: Turning, milling, gear surface machining, surface machining, and other roughing and finishing scenarios.
