From Thermal Deformation to High Stable Precision

SIGER Data's AI Real-time Thermal Compensation System Continuously "Locks in" Precision Machining Precision

Company News       Date：2026/01/26

In high-end manufacturing processes, the temperature rise generated by CNC equipment during continuous operation often becomes a key factor restricting machining accuracy. The structural thermal expansion caused by friction between moving parts inside the equipment and changes in ambient temperature directly affects the consistency of critical dimensions, a problem particularly prominent in demanding fields such as aerospace and precision mold making.

Addressing this industry pain point, SIGER Data has tailored a thermal error compensation management system for the precision machining industry. Through a technical architecture combining comprehensive monitoring, intelligent algorithms, and real-time intervention, it transforms the dynamic variable of equipment thermal deformation into quantifiable and controllable stable parameters, providing a reliable accuracy assurance solution for precision manufacturing.

1. Thermal Error: A Common Challenge in High-Precision Machining

In real production environments, the stability of equipment accuracy changes significantly with operating time: Initially, when cold, the positioning accuracy of the machining tool can reach the micrometer level, but after several hours of continuous machining, the critical dimensions of parts produced by the same machining program may exhibit systematic deviations of tens of micrometers. Actual measurement data shows that a certain type of vertical machining center exhibits positioning error fluctuations exceeding 80μm under a 10℃ temperature rise.

The impact of thermal deformation exhibits dual characteristics:

❌ Temperature-sensitive characteristics:For every 1℃ change in temperature of critical transmission components, a displacement deviation of several micrometers may occur per 500 mm of travel.

❌ Position-dependent characteristics:Under the same temperature conditions, the magnitude of thermal deformation varies significantly across different areas of the equipment.

This dynamic error characteristic leads to difficulties in traditional quality control methods: post-production inspection cannot prevent defective products, human experience is insufficient for accurate compensation, and passive cooling measures severely impact production efficiency.

2. Intelligent Compensation: Equipping Machine Tools with an "AI Brain"

The SIGER Thermal CMS system constructs a complete intelligent compensation closed loop of "perception-analysis-compensation," directly addressing the core of thermal error management:

✅ High-Precision Perception Network:Temperature sensors are deployed at key heat sources and structural points such as the machine tool spindle, lead screw, and guide rails to collect real-time temperature field data across the entire domain.

✅ AI Dynamic Thermal Error Model:Based on intelligent AI learning algorithms, the system autonomously establishes a precise mathematical model between temperature changes and the thermal elongation of each axis, and continuously learns and optimizes.

✅ Real-Time Dynamic Compensation Execution:Based on real-time temperature data, the model calculates the thermal deformation in milliseconds and sends reverse compensation commands to the CNC system, achieving immediate cancellation and precision locking of thermally induced deformation.

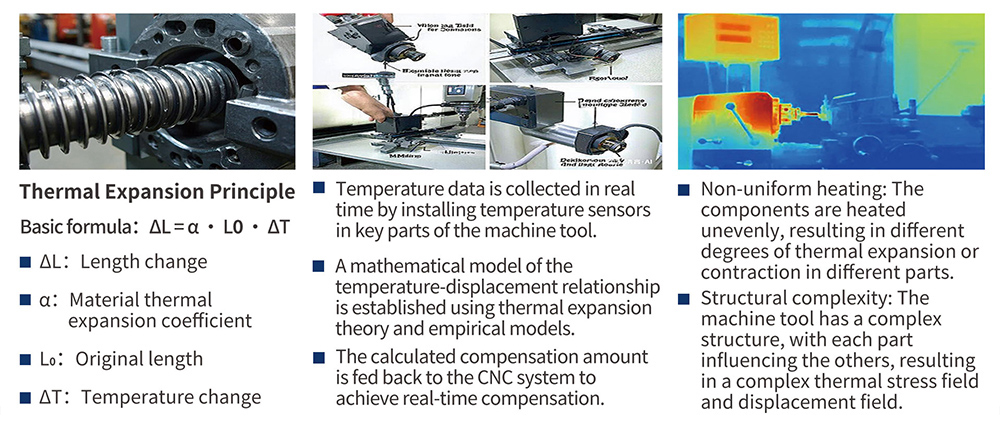

（Thermal expansion principle and functional implementation diagram）

3. Application Value: Comprehensive Improvement of Overall Benefits

This system has been successfully implemented and validated at multiple high-end manufacturing customer sites:

3.1Precision Guarantee

◼ Reduced thermal deformation by over 70%

◼ Maintained stable micron-level precision under long-term continuous processing conditions

3.2 Efficiency Improvement

◼ Eliminates production interruptions caused by waiting for thermal equilibrium

◼ Supports continuous high-precision processing modes around the clock

3.3 Quality and Cost Optimization

◼ Significantly reduces scrap rates due to dimensional deviations

◼ Reduces rework frequency and material waste

◼ Improves the reliability of high-value order delivery

4. Quickly Understand the SIGER Thermal Compensation Management System

The SIGER Data's Thermal Compensation Management System (Thermal CMS) reduces thermal errors caused by temperature changes during CNC machine tool processing through measurement and compensation systems, thereby improving machining accuracy and stability. Based on the machine tool's embedded structure and combined with a thermal error compensation model, it outputs compensation values in real time, effectively improving product machining accuracy, reducing product scrap rates, and decreasing thermal deformation by over 85%.

SIGER Data Thermal Compensation Management System Compatibility:

Applicable Machine Tool Types: CNC lathes, milling-turn centers, machining centers, gantry milling machines, and other cutting scenarios.

Applicable Machining Methods: Turning | Milling | Gear Surface | Curved Surface, etc.
