SIGER Machining Tool Spindles Collision Protection System V3.10 Iterative Release
SIGER Machining Tool Spindles Collision Protection System V3.10 Iterative Release
In order to enhance system security and stability, the SIGER DATA product team has conducted this version upgrade, which adds vibration threshold password protection to prevent unauthorized modifications; At the same time, the introduction of threshold statistics function utilizes real-time monitoring data to assist enterprises in accurately adjusting thresholds and improving operational management efficiency.

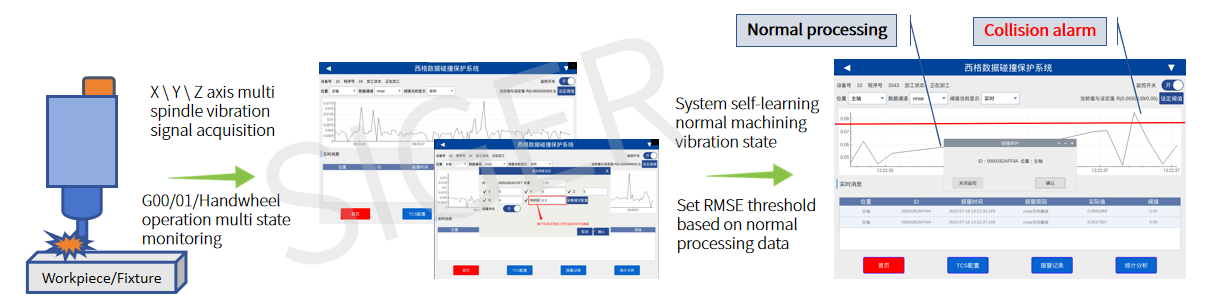

Monitoring schematic diagram
The machine tool spindle collision protection system (TCS) is a safety system that integrates advanced monitoring and control technology. It can monitor the operating status of the machine tool in real time. Once a collision is detected, the system will immediately respond and automatically stop the machine tool operation, effectively preventing further damage to the machine tool.
Machining Tool Spindles Collision Protection System：Real time monitoring of operational status
■ The lower computer of the system collects vibration signals in real time and monitors processing abnormalities.
■ Vibration sensors are used for collision recognition of CNC machine tools. When the vibration acceleration exceeds the set threshold upper limit, the system determines it as a collision event.
■ After a collision occurs, the monitoring module sends an alarm signal within 0.25ms, and the machine tool control system triggers an emergency stop alarm, causing the machine tool to quickly stop and minimize the damage caused by the collision.

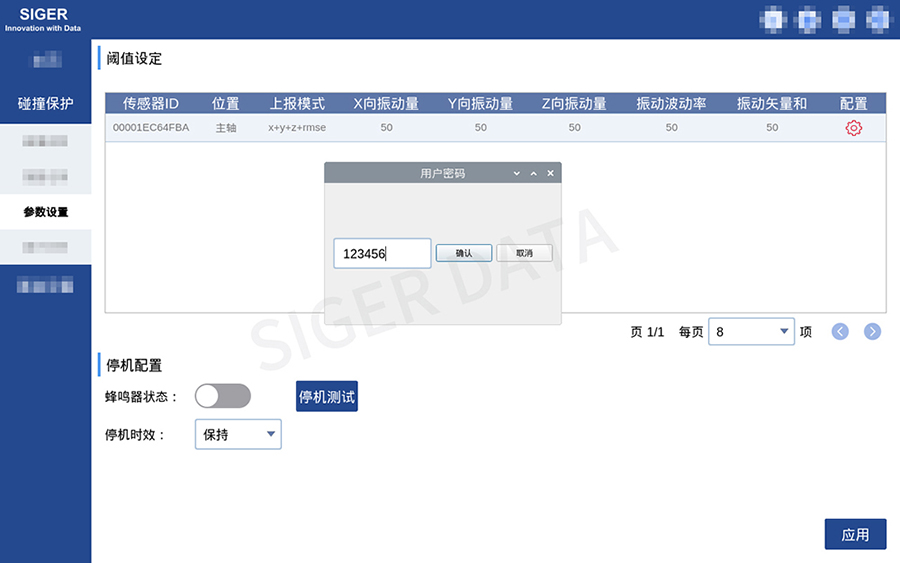

3.1 "Password verification when setting vibration threshold" function added
To ensure the safety of vibration threshold, the threshold configuration has been upgraded and a password verification mechanism has been added. When adjusting the threshold, it is necessary to enter the password correctly, otherwise the system will prompt "Password incorrect". After successful password verification, configuration can be carried out to effectively prevent unauthorized modifications and ensure the rigor of threshold settings.

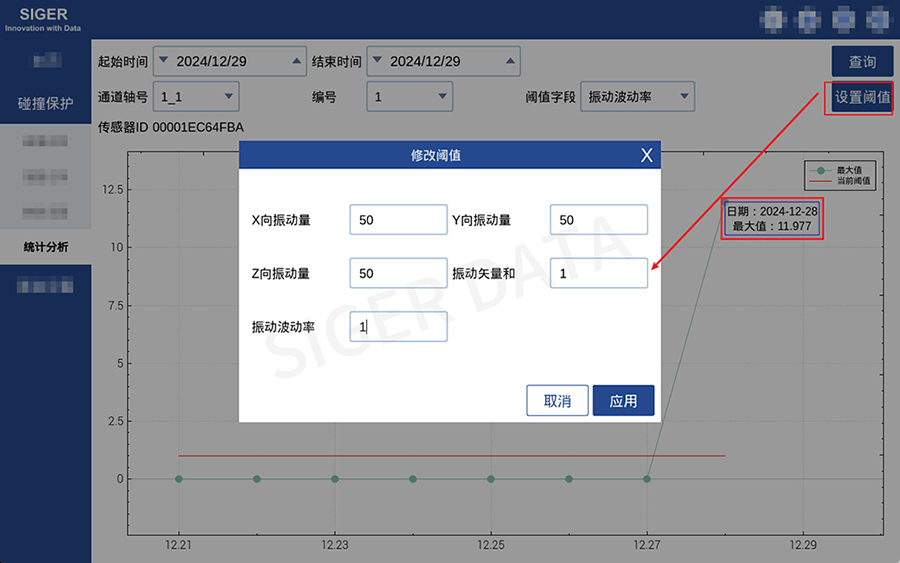

3.2The "Threshold Statistical Analysis" function has been added
Upgrade the collision protection function and add a "statistical analysis" page to visually display the peak daily vibration value, providing convenience for enterprises to accurately set thresholds, greatly improving operation and maintenance efficiency, and ensuring the safe operation of equipment.
SIGER Machine Tool Spindle Collision Protection System (TCS) is a digital product that monitors the spindle machining status in real-time and automatically analyzes and processes it. Through vibration sensors, it monitors the spindle machining status in real time. In the event of an unexpected collision, it can promptly sound an alarm and respond, while completing the machine tool shutdown operation to prevent greater damage to the machine tool.
Scope of application of SIGER Machine Tool Spindle Collision Protection System:
- ■ Applicable machine tool types: machining centers, turning and milling composites, lathes, grinders and other machine tool cutting scenarios.
- ■ Applicable processing techniques: large-scale repetitive processing, small-scale processing, no NC scenarios, etc. (feed distance of more than 1 meter).
- ■ Control system: Fanuc, Siemens, Heidenhain and other 95%+systems.
If you are interested in SIGER products, you can contact us by phone or email, or submit your requirements by leaving a message, and we will arrange personnel to contact you as soon as possible.
--------------------------------------------------------------------------------------------------------------------------------------------------------
